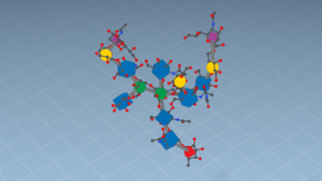

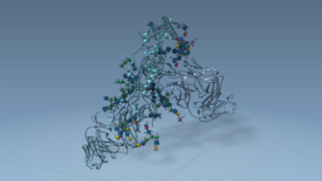

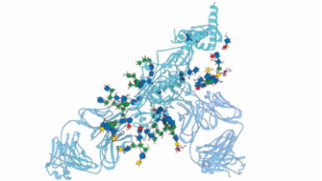

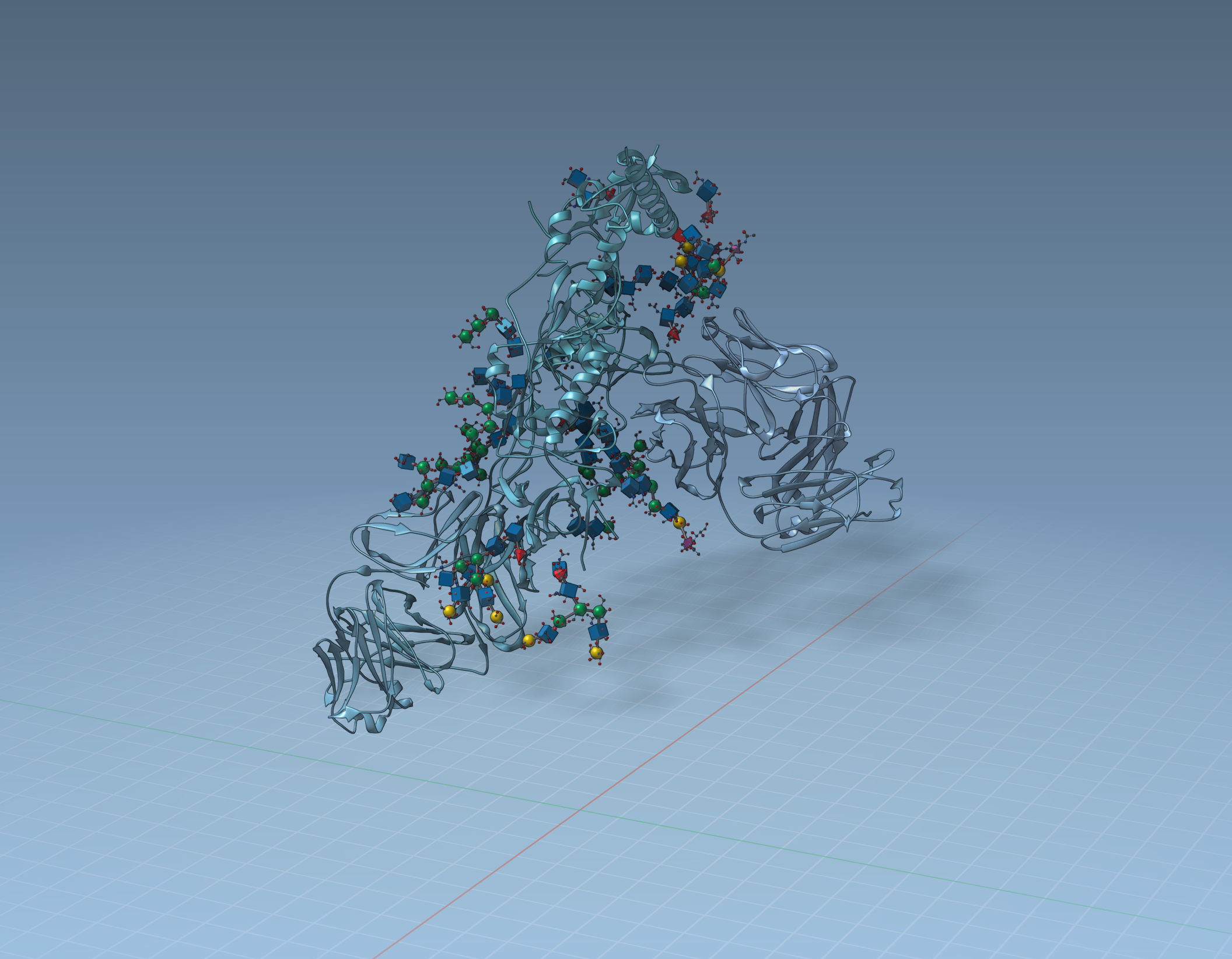

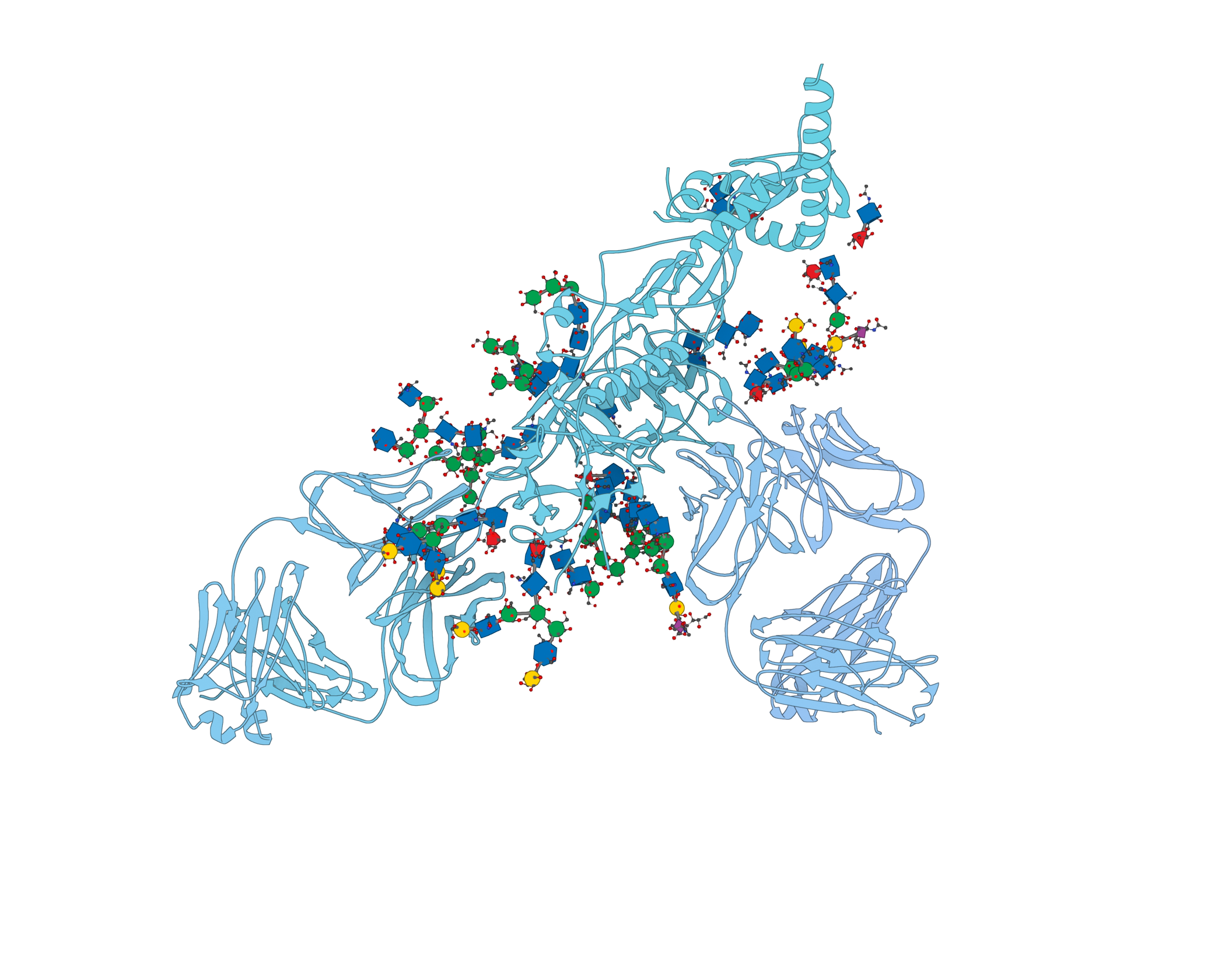

Visualize glycans with the 3D Symbol Nomenclature for Glycans (SNFG) representation.

This extension provides a visual model for glycans corresponding to the 3D Symbol Nomenclature for Glycans (SNFG).

To apply this visual model, press Ctrl+Shift+V or go to the Visualization menu > Visualize > Visual model. Then, in the pop-up dialog, choose “Glycans” from the list.

Glycans are detected based on their standard names and some standard groups that they contain.

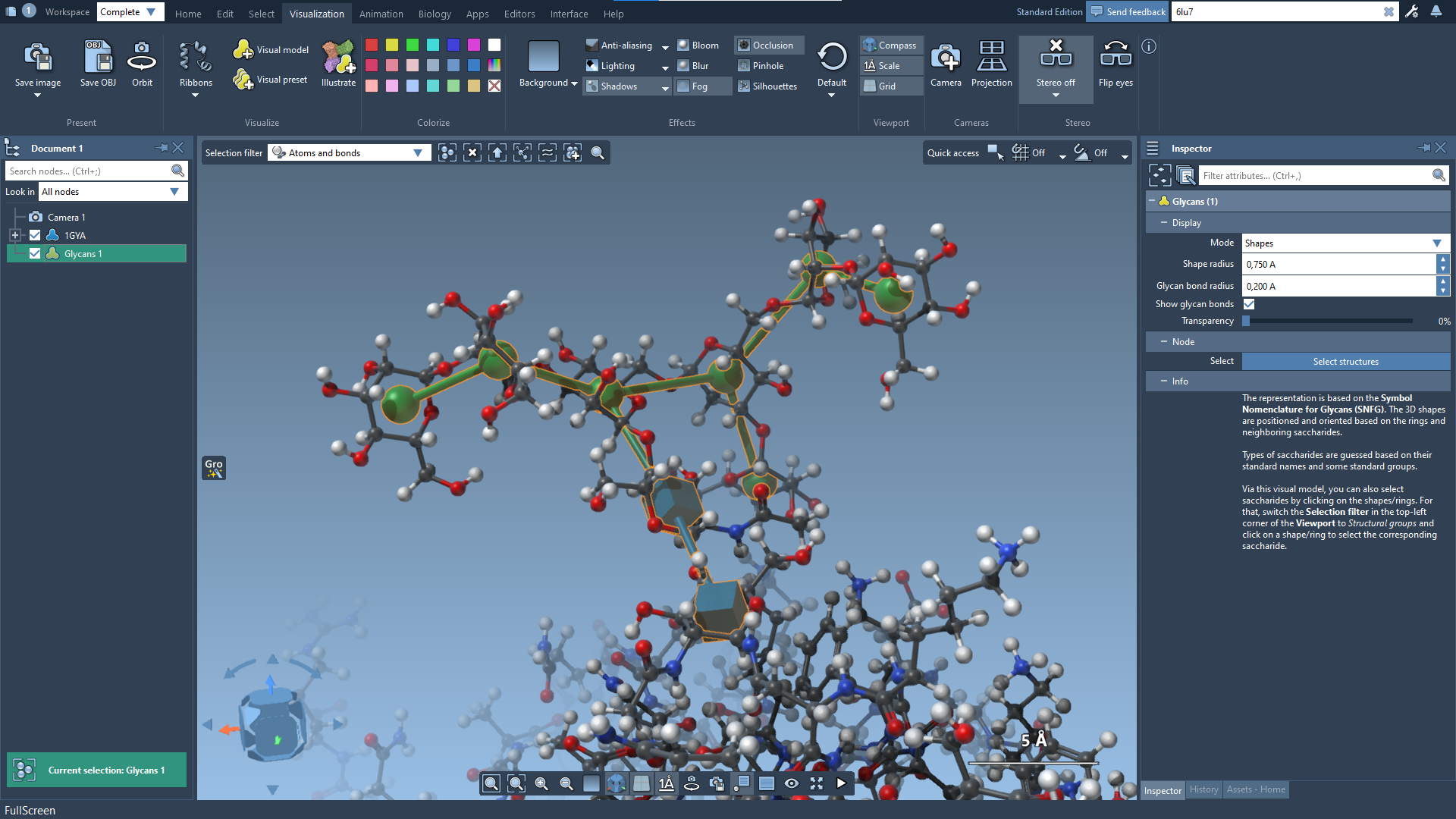

The Glycans Visual Model has a number of options. To modify them, select the visual model in the Document View and open the Inspector (Ctrl+2 or Interface menu > Inspector). Representation mode: Shapes (3D SNFG) or Rings (filled rings). Shape radius: modify the size of 3D SNFG shapes. Glycan bond radius: modify the radius of connections between the saccharides in the glycan.

https://documentation.samson-connect.net/wp-content/uploads/GlycansVM-properties.png

Via this visual model, you can also select saccharides by clicking on the shapes/rings. For that, switch the Selection filter (top-left corner of the Viewport) to Structural groups and click on a shape/ring to select the associated saccharide.

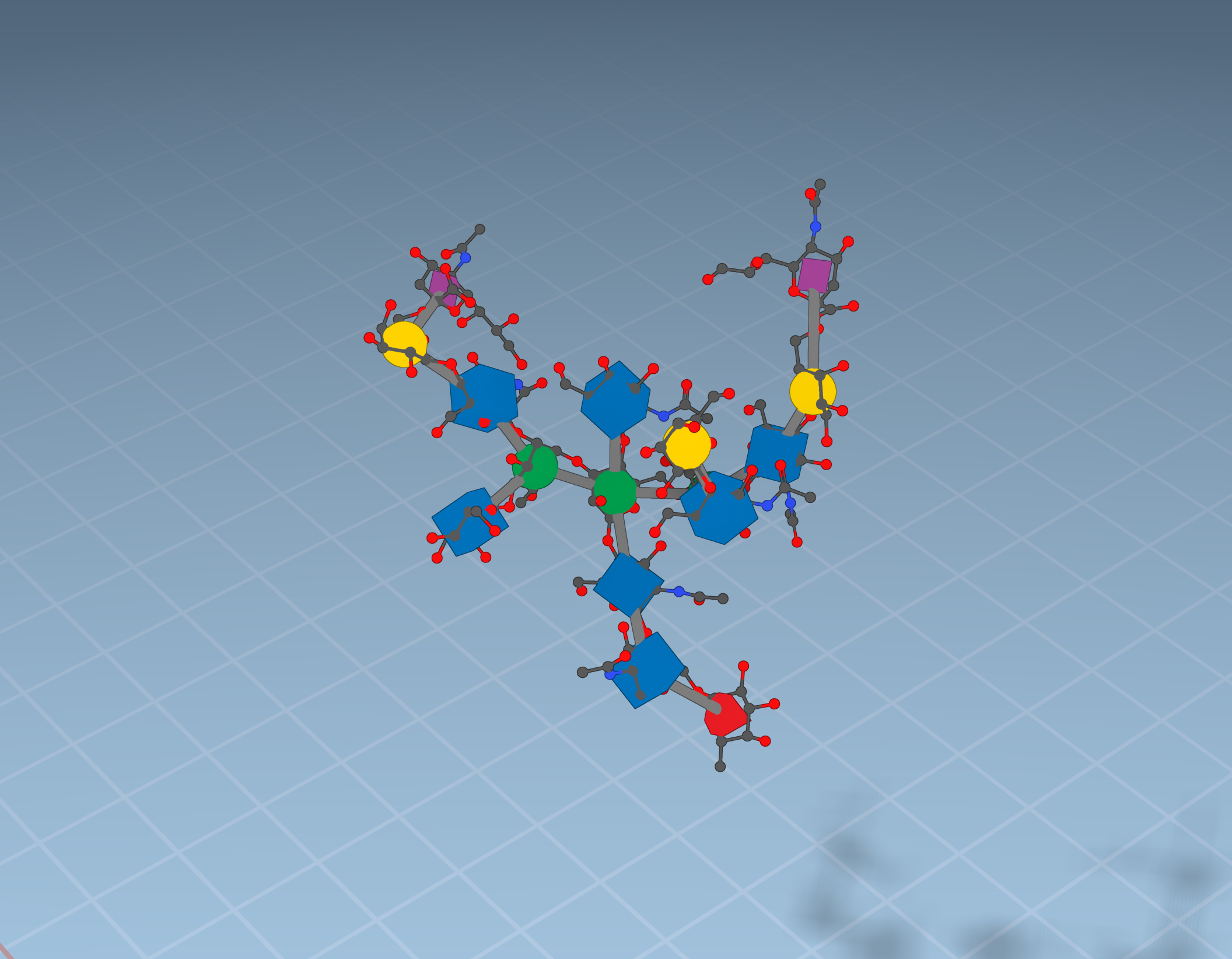

The 3D shapes are positioned and oriented based on the rings.

Have questions or feedback on visualizations or other topics? Ask on our Forum or join our Discord channel.
